Biometric Fingerprint Access Control with Tuya APP IP68 Waterproof Keypad Touch Screen RFID Card Reader with TTLCOK APP

Name: Biometric Fingerprint Access Control with Tuya APP IP68 Waterproof Keypad Touch Screen RFID Card Reader with TTLCOK APP
Brand: VANSHUI
Price: 1 USD

Best Biometric Fingerprint Access Control with Tuya APP IP68 Waterproof Keypad Touch Screen RFID Card Reader with TTLCOK APP wholesale

Brand Name : VANSHUI

Model Number : GL-AC06

Certification : CE,FCC

Place of Origin : SHANGHAI,CHINA

MOQ : 1pcs

Price : Negotiation

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 1000Pcs/month

Packaging Details : Unit Pacakge:15.6*7.6*6.6cm,G.W.:0.615kg Carton Package:47*30*18.2cm,G.W.12.5kg,20units/CTN

Delivery Time : sample order within 3-4days.

Product name : Biometric Smart Access Control Reader

Type : Fingerprint+APP+Passord+RFID Card

User Capacity : 1000 users (988 common users + 2 panic users +10 visitor users)

Waterproof Rank : IP66

PIN Length : 4~6 digits

Operating Voltage : 12~28V AC/DC

Proximity Card Reader : 125KHz(ID carfd) or 13.56MHz(IC card)

Wiring Connections : Relay output, exit button, alarm, door contact, Wiegand input/output

Relay : One (NO, NC, Common)

Operating Temperature : -30°C ~ 60°C

Contact Now

PRODUCT DESCRIPTION

Biometric Fingerprint Access Control with Tuya APP IP68 Waterproof Keypad Touch Screen RFID Card Reader with TTLCOK APP


Biometric Fingerprint Access Control with Tuya APP WiFi
IP68 Waterproof Keypad Touch Screen
RFID Card Access Control Reader with TTLock App

FEATURES

Outdoor Touch Keypad & Reader
1>Compatible with all BT/Wi-Fi enable mobile phones (Android:4.3 above,iOS:7.0 above)
  2>Integratedwith Tuya which supports 500 mobile users and 1000 local users
  3>TTLOCK APP support to add /Delete PIN /Card user and send eKeys
  4>Available for both iOS and Android,supporting multiple languages
  5>Multiple access modes:APP,Card,Password
  6>Metal housing,anti-vandal,Waterproof
  7>Support checking Opening Record
  8>Support Gateway
  9>Support Time Attendance

SPECIFICATION

Model	GL-AC06
User Capacity	Hardware User:1,000,APP User:500, Common User:988 (100 Fingerprint Users+888 PIN/Card Users),Visitor User:10,Panic User:2
APP option	Tuya (WIFI or BT) or TTLock APP
PIN Length	4~6 digits
Operating Voltage	12~28V AC/DC
Idle Current	≤ 60mA
Active Current	≤ 150mA
Proximity Card Reader	EM or Mifare
Radio Technology	125KHz or 13.56MHz
Read Range	2~6cm
Wiring Connections	Relay output, exit button, alarm, door contact, Wiegand input/output
Relay	One (NO, NC, Common)
Adjustable Relay Output Time	0~99 Seconds (5 seconds default)
Lock Output Load	2 Amp Maximum
Wiegand Interface	EM card version: Wiegand 26~44 bits input & output (Factory default: Wiegand 26bits) Mifare card version:Wiegand 26~44 bits,56bits,58bits input & output (Factory default: Wiegand 34bits)
PIN Output	4 bits,8bits (ASCII),10 digits Virtual Number(Factory default:4bits)
Environment	IP66
Operating Temperature	30°℃～60℃ (-22°F～140°F)
Operating Humidity	0%RH ~ 98%RH
Physical	Zinc-Alloy
Color	Sliver & Black
Dimensions	L148x W43.5 x H22 (mm)
Weight	Unit Weight:1KG;Shipping Weight:1.5KG

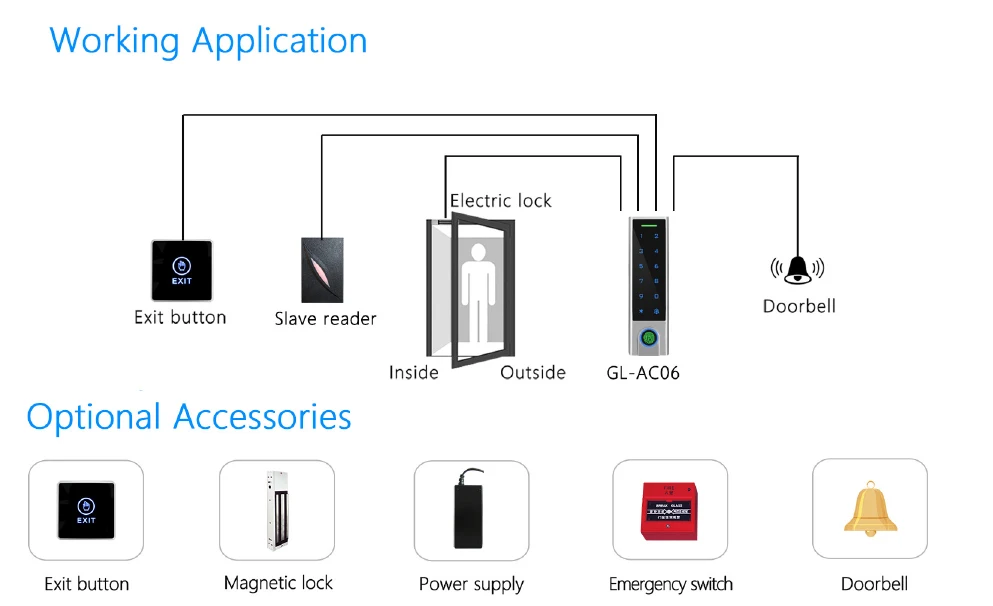

DIAGRAM

DETAILS

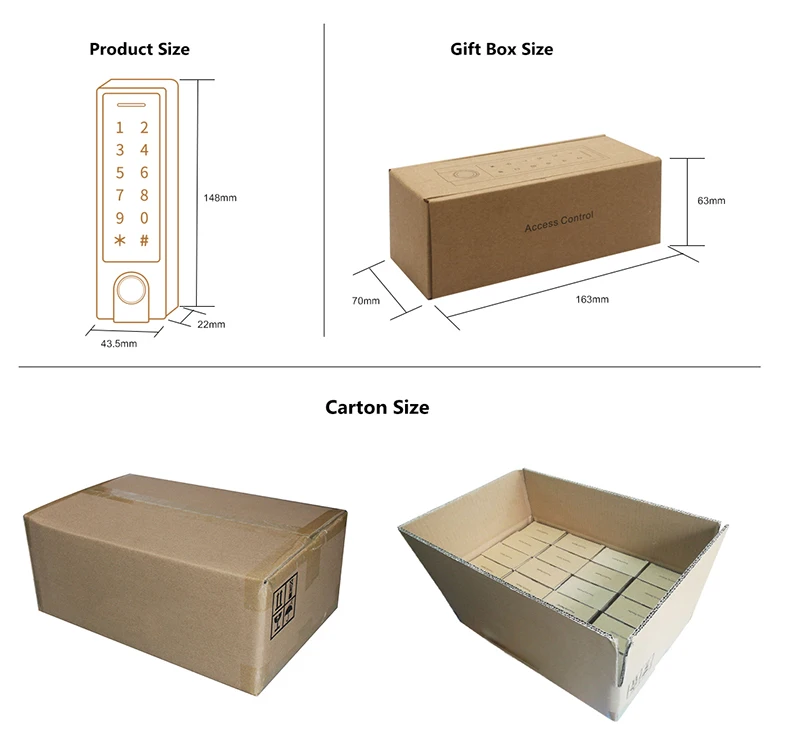

PRODUCTS PACKAGE

APP INTRODUCTION

TUYA APP INTRUCTION

TTLOCK APP INTRUCTION
