Single Doors Access Controller IP-Based Connect with Fingerprint/RFID Card Reader(Inbio160)

Name: Single Doors Access Controller IPBased Connect with FingerprintRFID Card ReaderInbio160
Brand: VANSHUI
Price: 1 USD

Best Single Doors Access Controller IP-Based Connect with Fingerprint/RFID Card Reader(Inbio160) wholesale

Brand Name : VANSHUI

Model Number : inBIO160

Certification : CE,FCC

Place of Origin : SHANGHAI,CHINA

MOQ : 1pcs

Price : Negotiation

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 10000Pcs/month

Packaging Details : 250*200*80(Single board),weight:2KG

Delivery Time : 5-8 working days

Special Feature : Access Control Panel For Single Door

Type : Support Fingerprint+Card Reader

RAM/Flash Memory : 32M Bit/128M Bit

CPU : 32Bit 400MHZ CPU

Wiegand Reader Port : 2ea (26bit Wiegand, 8bit Burst for PIN)

Input Port : 3ea (Exit Button#1, Door Sensor#1,AUX#1 )

Output Port : 2ea (1 FORM-C Relay Output, 1 FORM-C Relay for AuxOutput)

Communication : RS485, TCP/IP

Software : Access 3.5

Contact Now

PRODUCT DESCRIPTION

Single Doors Access Controller IP-Based Connect with Fingerprint/RFID Card Reader(Inbio160)

Door Access Controller for Single Doors Access Control Inbio160 IP-Based Connect with Fingerprint and RFID Card Reader

inBIO160 a new concept access controller based on biometric identification aims to improve the security of users life and information, it means that visitors need to place fingerprints on reader and the data collected is transferred to controller to verify. inBIO160 is specially designed for applications like home, offices and enterprises, users may choose from serial communication or Ethernet to get linked to software for central management, meanwhile, the distance between controller and RS485 readers could be more than 800m. inBIO160 is very convenient and safe for users to connect other security products for its groove socket, even quietly brilliant to see its working status through LED indicators on surface. Web-based management helps know about the local events on e-map and video remotely in real time control. We believe it will bring a big revolution of access control market in the world.

FEATURES

1/ Multiple hardware protection measure
  There are over-current protection, over-voltage protection, reversal protection for the power supply and all the input and output terminal.
  2/ Integration with Other Security Systems
  Inbio160 can be integrated with other security systems such as CCTV, fire alarm, BAS(building automation system) and other systems to configure total security system.
  3/ Supports different wiegand reader
  wiegand format, and can connect to different reader, including ID card reader and MF card reader
  4/ Input/Output Ports to Control Doors
  Connect with variety of sensors, alarms, exit buttons, electric lock and other devices.
  5/ Variety of Communication Function
  Using either serial or TCP/IP communication, it provides reliable network system
  6/ B/S structure software
  It is easy to manage the system by browser from client PC. There is no need to install software on each client.
  7/ Normal open after first punch card can be setup
  8/ Real-time Monitoring of Door status
  Using the management software, it allows real-time monitoring and control of door opening and closing of the whole system.
  9/ Simple Access Control System Configuration
  10/ Interlock function
  Link different doors with special logic that one door is Open, others should be closed.
  11/ Multi-card operation
  This function is used to manage visitors or to manage some special high secure place. The doors are opened when appointed number registered cards are read together.
  12/ Anti-Passback
  13/ Duress Mode
  The system integrator can use the SDK to integrate the hardware into their existing access control software system or to develop a new software.

SPECIFICATION

Model	inBIO160
CPU	32bit 400MHz CPU
RAM	32M bits
Flash Memory	128M bits
Fingerprint Capacity	3000
Card Capacity	30,000
Event Buffer	100,000
Power / Current	DC 9.6V-14.4V, Rated Max.1A
Wiegand Reader Port	2ea (26bit Wiegand, 8bit Burst for PIN)
RS485 Reader Port	2ea Extended RS485 Port
Communication	RS485, TCP/IP
Input Port	3ea (Exit Button#1, Door Sensor#1,AUX#1 )
Output Port	2ea (1 FORM-C Relay Output, 1 FORM-C Relay for AuxOutput)
LED Indicator	Yes, LED indication for communication, power, status and punch card
Operating Temperature	0-45℃
Operating Humidity	20% to 80% relative humidity non-condensing
Package Dimension (HWD)mm	25020080(Single board),weight:1.5KG 400350120(with power supply and metal cabinet),4KG
Housing Material	PVC
Software	ZKAccess 3.5

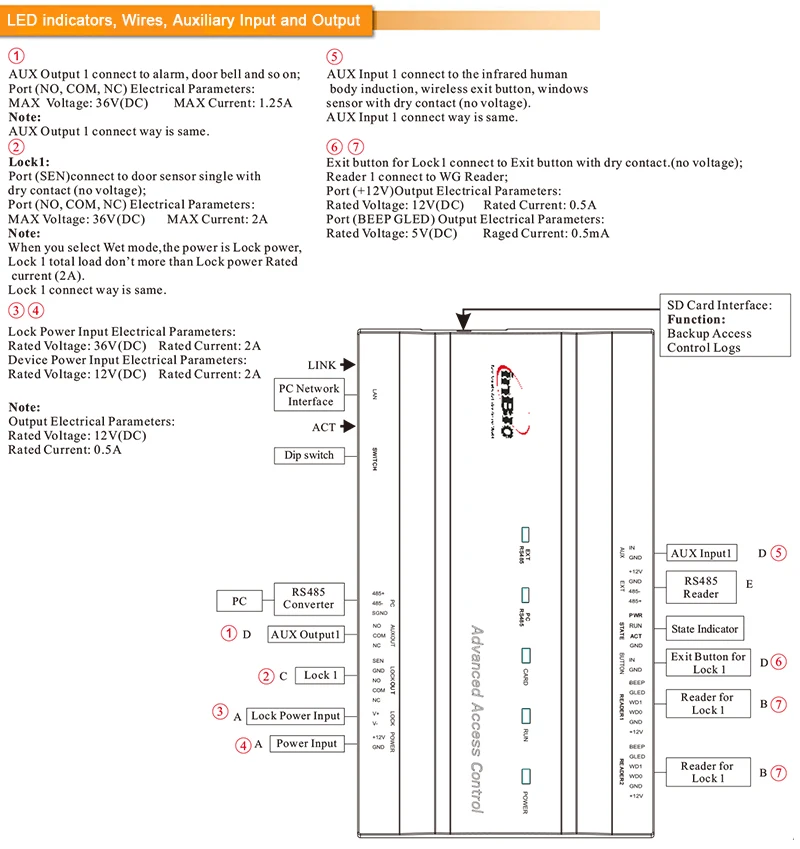

DIAGRAM

DETAILS

SOFTWARE

PRODUCTS PACKAGE
